Product Details

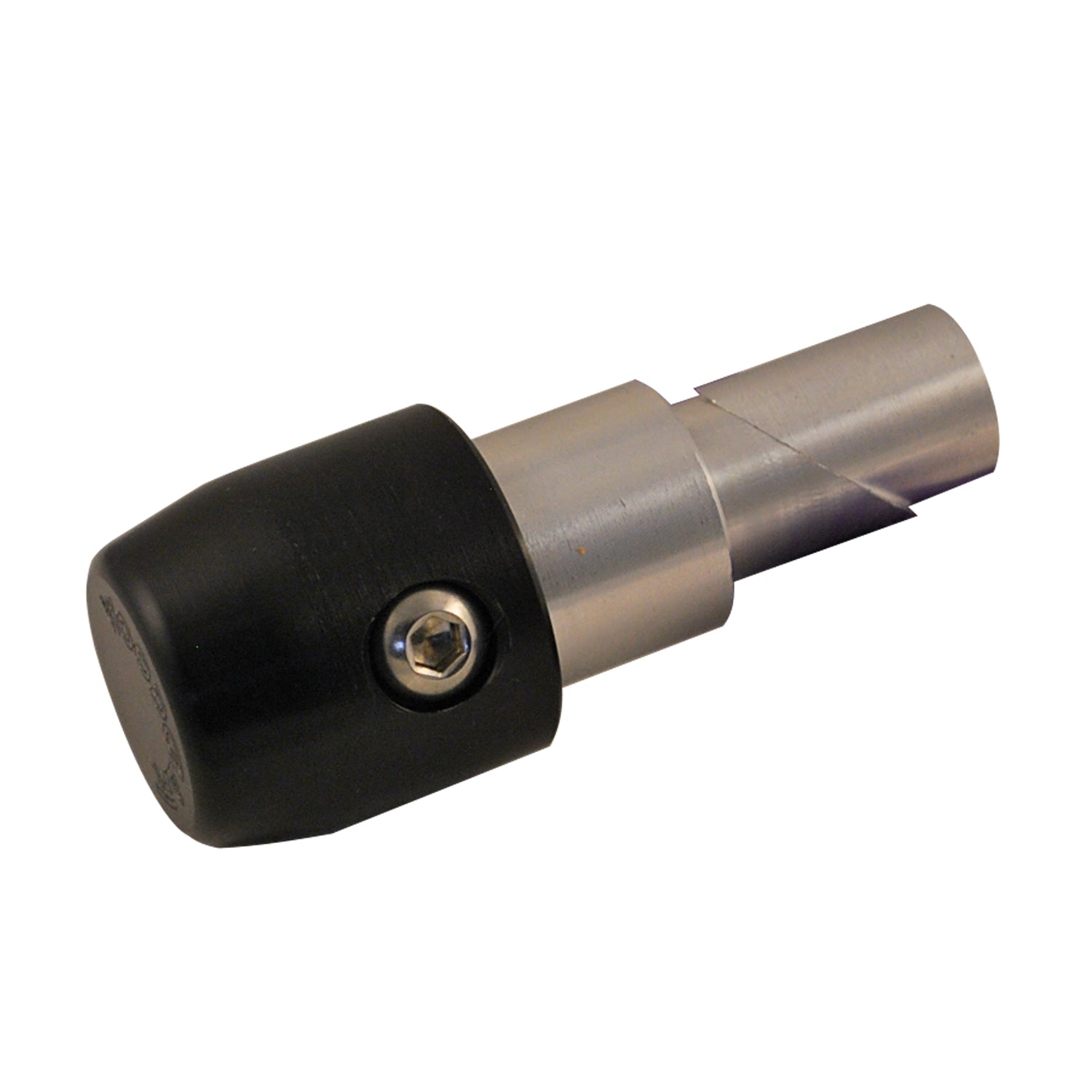

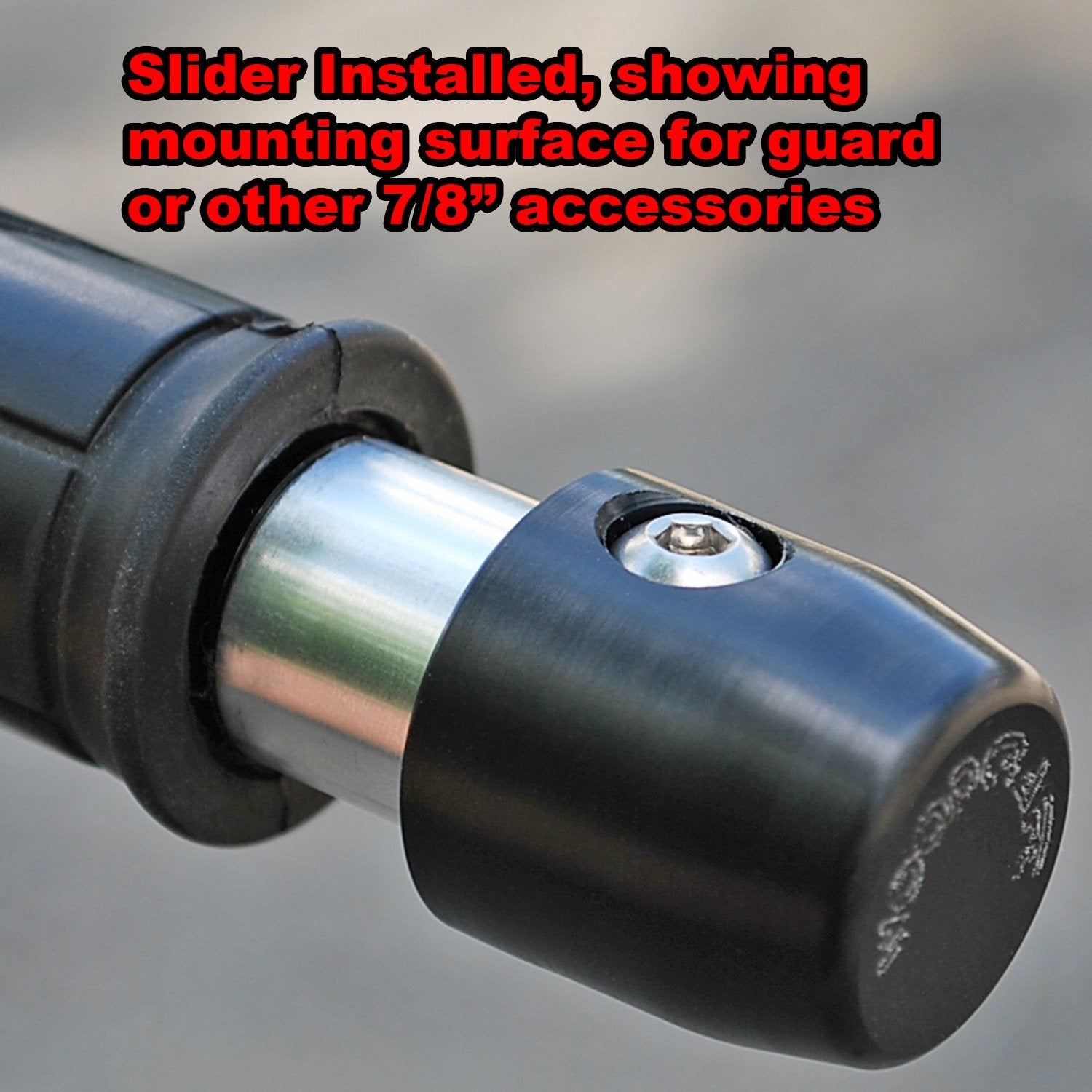

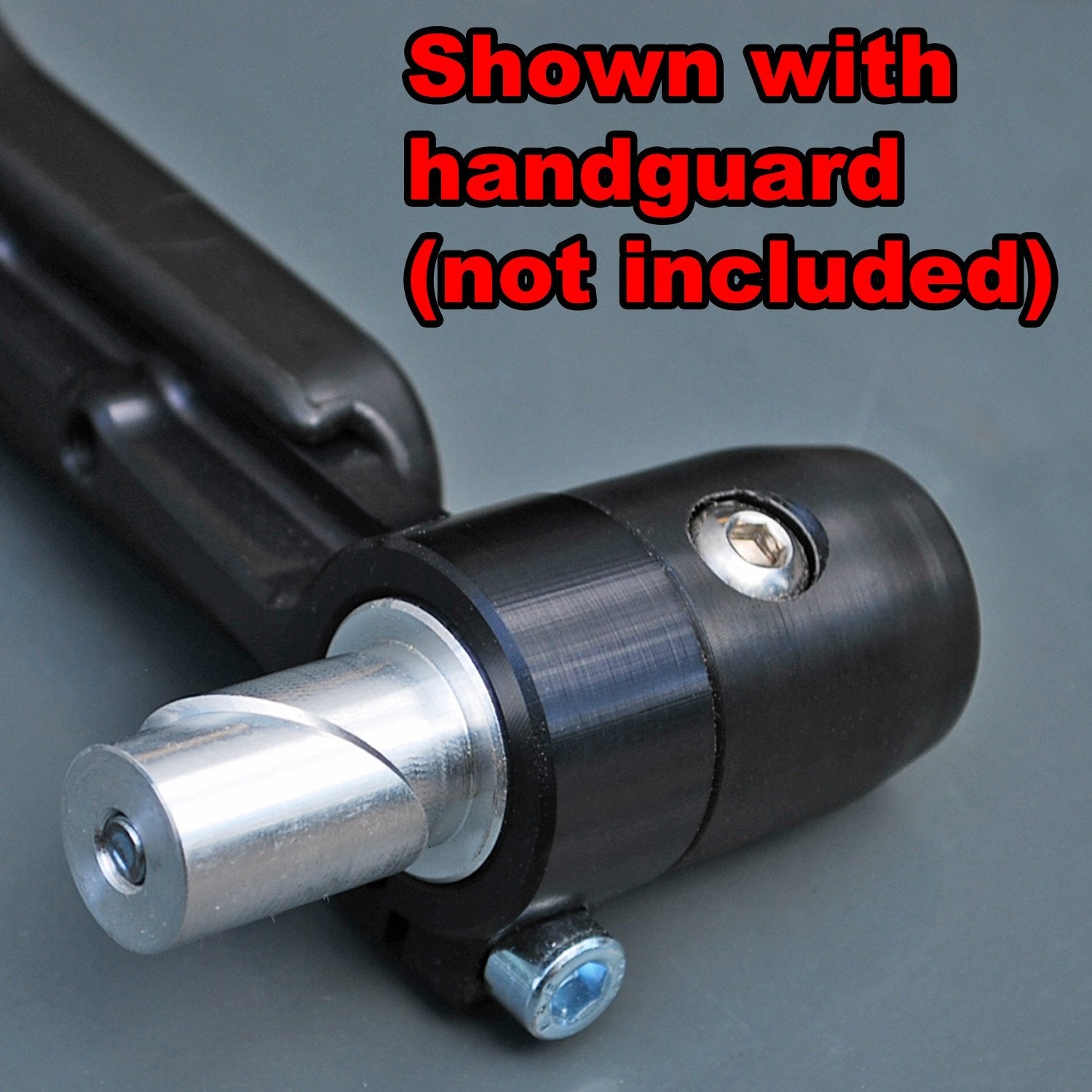

Bar End Slider Assembly with handguard (or other accessory) mounting surface. Simply remove your pressed-in handlebar ends and use the expansion joint to secure this mount inside the bar. The 7/8" OD mounting surface is designed for mounting Woodcraft handguards but can also be used for other accessories like bar-end mirrors. The 7/8" mounting surface is 0.700 inches wide.
This kit comes with a single bar end and is designed to work with Woodcraft handlebars (not OEM handlebars). It will also work on any other aftermarket bar that has a 5/8" inside diameter.
NOTE: our bars 15.8mm = 5/8” and bar end can expand up to 17.1mm
Specifications
| Type | Bar End Slider with Guard Mount |
|---|---|
| Material | Plastic |
| Kit Contents | Single bar end |
| Mounting Surface Outer Diameter | 7/8 in |
| Mounting Surface Width | 0.700 in |
| Bar Inner Diameter | 5/8 in |
| Max Bar End Expansion | 17.1 mm |
Verified from Garamoto’s catalog & fitment data.
