Öhlins TTX GP Shock (DU 569) for 2020-2024 Ducati Panigale V2 +3 more

Part # DU-569
Item #DU-569
Special Order. Ships in 5-8 weeks.
Fits 4 motorcycles
  • Ducati
    • 899 Panigale · 2014-2015
    • 959 Panigale · 2016-2019
    • Panigale V2 · 2020-2024
    • Streetfighter V2 · 2022-2023
Regular price$1,571.90
/
Shipping calculated at checkout.
  • In stock, ready to ship
  • Backordered, shipping soon

  • Flat $10 U.S. shipping, free over $100
  • Ships from one of three U.S. warehouses
  • Secure checkout
Spring Setup

Want it sprung for your weight? Add your geared-up riding weight and we set the unit up with the right spring. Optional; leave blank to order as it comes.

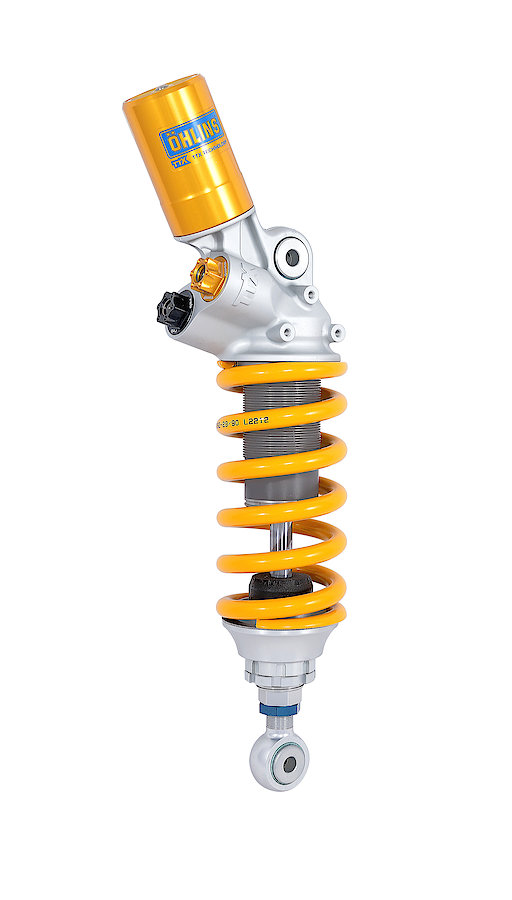

Öhlins TTX GP Shock (DU 569)
Product Details

Hypersport TTX GP Shock Ducati

The TTX GP Shock is based on the highly regarded TTX technology that has been developed from Öhlins' vast experience in MotoGP. Compared with the standard TTX36 MkII, the compression and rebound adjustments have improved even further with a new adjustment needle that provides better guidance and a different flow restriction behavior. The function of the damper is more consistent with less variation and the adjusters work in a more precise manner. A new main piston completes the package - designed to improve traction and rider control.

Did we mention that the weight is reduced even further? Among the advantages are an improved chassis feedback as well as enhanced performance. Also, the adjustment range is even wider and, with this new design, the variation in behavior from one shock absorber to another is further reduced – proof of Öhlins commitment to precision. The TTX GP continues on the TTX36 path, sharing and improving the benefits of one of the best shock absorbers in the world. TTX GP will be available for most major bikes used in national racing as well as the new street bike models.

  • Twin Tube Shock with Piggyback Reservoir
  • TTX-Technology with no Cavitation Risk
  • Adjustable Compression and Rebound
  • Adjustable Preload w/ tool
  • Adjustable Length – ½”
  • 36mm Piston Diameter
  • Hard Anodized - Precision CNC-Machined Components
  • Low-friction Shaft / Seal Head design
  • Fully Serviceable and Repairable

Specifications

TypeShock absorber
SeriesTTX GP
Best ForTrack

Verified from Garamoto’s catalog & fitment data.
