Bitubo EBH0 Fork Cartridge Kits (H0155EBH09) for 2020-2026 Honda CBR1000RR

Part # H0155EBH09
Item #H0155EBH09
Custom order. Built to your spec, ships in 3-5 weeks.
Fits 1 motorcycle
  • Honda
    • CBR 1000 RR · 2020-2026
$2,848.95
/
Shipping calculated at checkout.
  • In stock, ready to ship
  • Backordered, shipping soon
  • Flat $10 U.S. shipping, free over $100
  • Ships from one of three U.S. warehouses
  • Secure checkout
Build Setup · Required

Bitubo valves and springs each unit to you. Enter your details and their technical team sets the spring rate to match before it ships.

Custom-built and shipped direct. This is a made-to-order unit, not stocked.

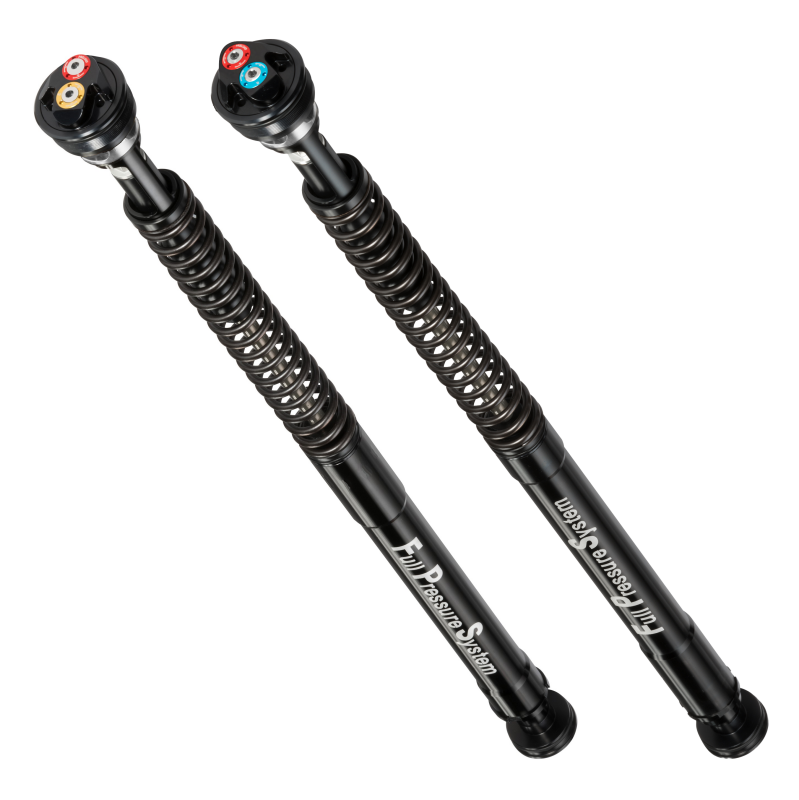

Bitubo EBH0 Fork Cartridge Kits
Product Details

The EBH cartridge is a high-performance, pressurized system that incorporates a range of advanced technologies, including the established FPS, EC, and LC systems, as well as the newly developed OPC (Overpressure Control) system. These innovations are the result of extensive research and development conducted in collaboration with top teams competing in premier racing championships such as WorldSBK, BSB, IDM, and CIV. All adjustments, including spring prelaod, compression and rebound are positioned on the top cap and distinctly separated between the two cartridges to allow for a more precise and intuitive setup.

  • Cr-Si steel springs with heat treatment, pre-settling process and final shot peening
  • Upper fork cap with integrated spring preload adjuster
  • Mechanical bottom-out with NBR polyurethane buffer
  • Hydraulic control with FPS (Full Pressure System)
  • Coaxial compensation chamber

Specifications

TypeCartridge kit
SeriesEBH0
AdjustabilitySpring preload, rebound, compression
Hydraulic Control SystemFPS (Full Pressure System)
Compensation ChamberCoaxial
Bottom-out Buffer MaterialNBR polyurethane
Spring MaterialCr-Si steel
Oil Volume1 L

Verified from Garamoto’s catalog & fitment data.
