Product Details

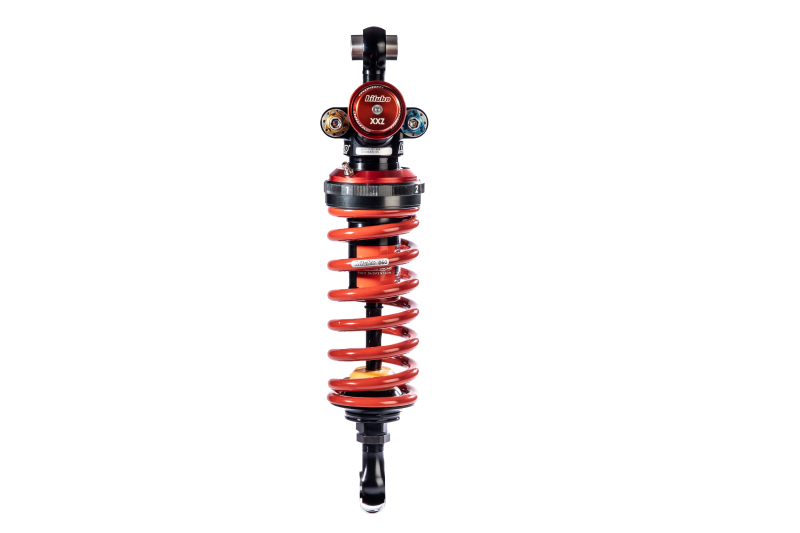

The XXZ Monoshock, derived from the championship-winning XXF and once only used by Bitubo's official race partners, delivers top-tier performance with a completely redesigned body and advanced technology. It features four-way adjustability, compression and rebound at both high and low speeds, allowing for precise tuning and rider feedback. Internal upgrades enhance smoothness, improve damping consistency, and maintain stability under extreme temperatures.
- 30mm main piston and 14mm stem ensure sensitivity, precision and quick reaction to surface changes
- Separate compensation tank enhances heat dissipation and maintains consistent damping performance
- Built from lightweight, high-grade materials to maximize responsiveness and unsprung weight
- Wide adjustability range and ergonomic control make it simple to dial in the perfect setup
Fitment
- Yamaha MT 10 2016–2021
- Yamaha YZF R1 2015–2026
- Yamaha YZF R1M 2015–2018
Specifications
| Type | Monoshock |
|---|
| Series | XXZB |
|---|
| Adjustability | Pneumatic Preload, Dual Rebound, Dual Compression |
|---|
| Length | 315 mm |
|---|
| Length Adjustment | -5 +3 mm |
|---|
Verified from Garamoto’s catalog & fitment data.
