NGK Iridium IX Spark Plug — IMR9E-9HES

Part # 7556
Item #IMR9E-9HES
Fits 8 motorcycles
  • Honda
    • CB 1000 R · 2008-2026
    • CB650R · 2019-2026
    • CBR 1000 RR · 2008-2019
    • CBR 600 RR · 2009-2019
    • CBR1000RR SP · 2017-2019
    • CBR650R · 2019-2020
    • VFR1200F · 2010-2016
    • VFR1200F DCT · 2010-2012
Regular price $23.26 Sale price$21.99 Save $1.27
/
Shipping calculated at checkout.
  • In stock, ready to ship
  • Backordered, shipping soon

  • Flat $10 U.S. shipping, free over $100
  • Ships from one of three U.S. warehouses
  • Secure checkout

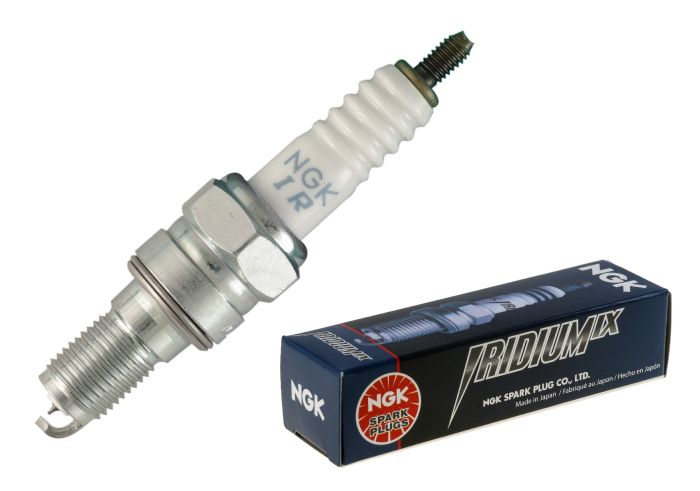

NGK Iridium IX Spark Plug — IMR9E-9HES
NGK Iridium IX Spark Plug — IMR9E-9HES
Product Details

OE-fitment iridium plug used by major motorcycle and ATV manufacturers — laser-welded platinum disc on the ground electrode plus an iridium center tip for the longest service life NGK builds.

  • Iridium center electrode plus a laser-welded platinum pad on the ground electrode — both rare metals erode much slower than nickel, so the gap stays stable for the full service interval.
  • Fine-wire center electrode (typically 0.6mm) needs less voltage to fire and ignites the mixture more reliably at idle and on a cold start.
  • Specified as original equipment on many late-model fuel-injected motorcycles, ATVs and personal watercraft — direct replacement, no gap or heat-range change.
  • Trivalent plating on the metal shell resists corrosion in salt air and prevents thread seizure in aluminum heads.
  • Sold individually — match the part number on the plug body to the OE call-out in your owner's manual.

Spec: IMR9E-9HES

Fitment

Honda: CBR 600 RR 2009–2019 · CB 650 R CB650R, CB650RA 2019–2026 · CBR 650 R CBR650RAR, CBR650RACR 2019–2026 · CB 650 RAC CB650RAC 2024–2026 · CB 1000 R CB1000R 2008–2026 · CB 1000 RA CB1000RA 2008–2026 · CBR 1000 RR Fireblade SC59A 2008–2019 · CBR 1000 RR SC59A 2011–2019 · CBR 1000 RR SP SC77E 2017–2019 · VFR 1200 F SC63 2010–2016 · VFR 1200 F DCT SC63 2010–2016 · VFR 1200 V4 SC63 2010–2016 · VFR 1200 V4 Tourer SC63 2010–2016

Specifications

The NGK 7556 is a spark plug verified to fit 8 motorcycles including Honda CB 1000 R; Honda CB650R; Honda CBR 1000 RR. It matches an OE spark plug gap 0.9 mm.

Electrode MaterialIridium
Ground Electrode MaterialPlatinum
Center Electrode Diameter0.6 mm
Thread PlatingTrivalent
Spark Plug Gap0.9 mm

Verified from Garamoto’s catalog & fitment data.
