Nitron NTR R3 Rear Shock for 2022-2023 Honda CB500F

Item #NTBKH 101R
Special Order. Ships in 3-5 weeks.
Fits 1 motorcycle
  • Honda
    • CB 500 F · 2022-2026
$945.00
/
Shipping calculated at checkout.
  • In stock, ready to ship
  • Backordered, shipping soon
  • Flat $10 U.S. shipping, free over $100
  • Ships from one of three U.S. warehouses
  • Secure checkout
Build Setup · Required

Nitron builds each unit to order and sets the spring rate to your weight. Enter your weight with all your riding gear on (helmet, leathers, boots) so their technical team can configure the optimum spring rate before it ships.

Built to order by Nitron and configured to your setup. Ships in 5 to 8 weeks.

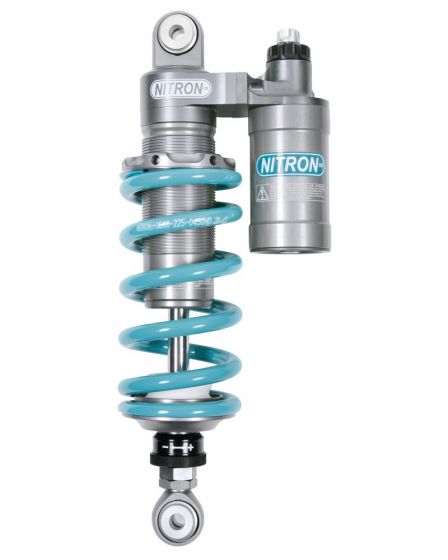

Nitron NTR R3 Rear Shock, Honda CB500F 2022-2023
Product Details

Special Order. Ships in 3-5 weeks.

HONDA CB500F (22-23) NTR R3

SPECIFICATION

  • Piggyback or hose mounted type reservoir (depending on application)
  • Hard anodised alloy body
  • Independent high/low speed compression and rebound adjustment
  • 24 clicks of rebound adjustment
  • 16 clicks of high speed compression adjustment
  • 16 clicks of low speed compression adjustment
  • Nitrogen gas charged
  • Large 40mm piston design
  • 14mm Piston rod
  • Preload adjustment
  • Length adjustment (where available)

Specifications

TypeRear shock
SeriesNTR R3
AdjustabilityCompression (high/low speed), rebound, preload
Rebound Adjustment24 clicks
High-Speed Compression Adjustment16 clicks
Low-Speed Compression Adjustment16 clicks
Gas ChargeNitrogen
Piston Diameter40 mm
Piston Rod Diameter14 mm
MaterialHard-anodised alloy

Verified from Garamoto’s catalog & fitment data.
