Nitron
Back to Nitron

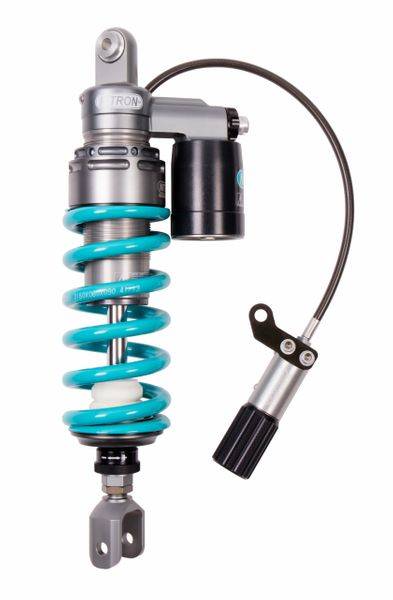

Nitron NTR R3 Rear Shock with HPA, KTM RC 125/200/390 2012-2018

Item #NTBKKT 03RH
Special Order. Ships in 5-8 weeks.
Fits 2 motorcycles
  • KTM
    • 200 RC · 2014-2024
    • RC 390 · 2014-2026
$1,265.00
/
Shipping calculated at checkout.
  • In stock, ready to ship
  • Backordered, shipping soon
  • Flat $10 U.S. shipping, free over $100
  • Ships from one of three U.S. warehouses
  • Secure checkout
Build Setup · Required

Nitron builds each unit to order and sets the spring rate to your weight. Enter your weight with all your riding gear on (helmet, leathers, boots) so their technical team can configure the optimum spring rate before it ships.

Built to order by Nitron and configured to your setup. Ships in 5 to 8 weeks.

Nitron NTR R3 Rear Shock with HPA, KTM RC 125/200/390 2012-2018
Product Details

KTM RC 125/200/390 (12-18) NTR R3 + HPA

NTR R3 SHOCK

Ultimate flexibility for the demanding rider with standard setting options for track and race use.

Independent 3-way damping adjustment. The NTR R3 is ideal for the most demanding riders who require maximum set-up flexibility. The piggyback or remote hose reservoir allows quick and simple independent adjustment of rebound and high and low speed compression damping. The large range of adjustment and high degree of feedback allows the experienced rider to fully exploit the potential of their bike.

SPECIFICATION
  • Piggyback or hose mounted type reservoir (depending on application)
  • Hard anodised alloy body
  • Independent high/low speed compression and rebound adjustment
  • 24 clicks of rebound adjustment
  • 16 clicks of high speed compression adjustment
  • 16 clicks of low speed compression adjustment
  • Nitrogen gas charged
  • Large 40mm piston design
  • 14mm Piston rod
  • Preload adjustment
  • Length adjustment (where available)
  • Remote Hydraulic Preload Adjustor for quick preload adjustment (Nitron recommends a Hydraulic Preload Adjustor for intermittent pillion use)
