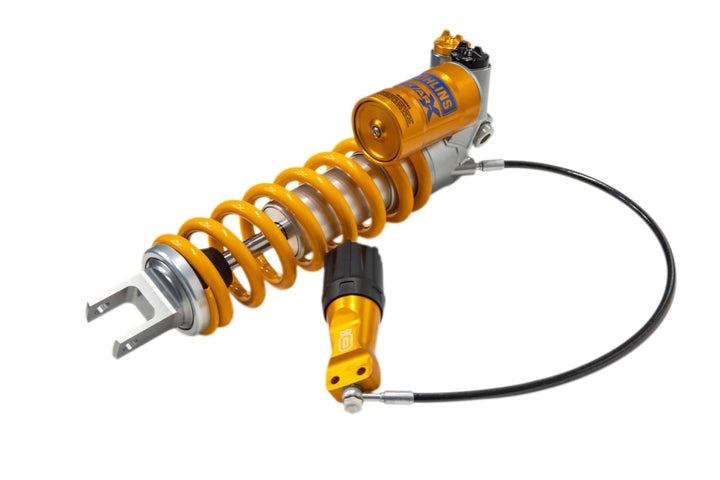

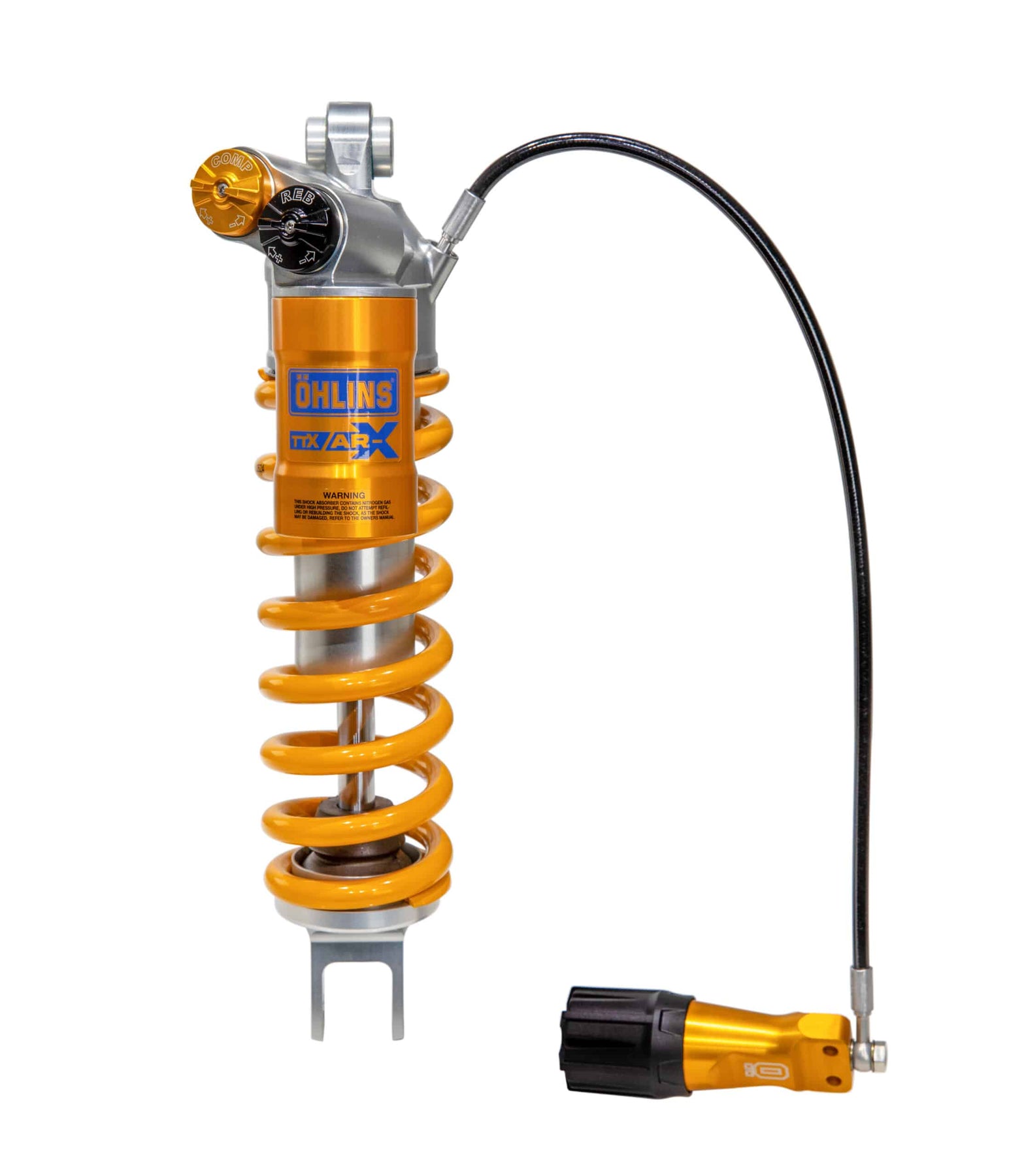

Öhlins TTX /AR-X40 shock for Yamaha Tenere 700 with Remote Hydraulic preload adjuster, 2025-on
Presenting the next-generation twin-tube rear shock absorber for adven-
ture motorcycles that provides significantly increased on-road comfort and
off-road performance. The new Öhlins TTX AR-X 40 shock also is well
suited to the higher loads and other operating demands of street and
hyper naked bikes.
TTX AR-X 40 features a 40mm (diameter) piston fitted with a high-speed
blow-off valve that increases comfort and control over an impressively
broad range of damping forces. The new shock is equipped with an
integrated hydraulic preload adjuster that keep the preferred ride height at
increased load and enables riders to increase preload at the damper by up
to 20mm, adjusting seat height by as much as 50mm, depending on the
application. The advanced preload adjuster includes an innovative modular
interface that facilitates manual or electric adjustment. The TTX AR-X 40 is
also compatible with Öhlins SmartEC semi-active suspension technology.
FEATURES
> TTX-technology
> Piston with highspeed blow-off valve
> Preload adjuster integrated in shock head
> Preload adjustment by up to 20 mm
> Increased on-road comfort and off-road performance
> Easy access compression/rebound adjusters, no tools needed.
> Optional springs available
Specifications
| Type | Mono shock |
|---|---|
| Series | TTX AR-X40 |
| Damping Technology | Twin-tube (TTX) |
| Piston Diameter | 40 mm |
| Valve Type | High-speed blow-off valve |
| Best For | Off-road / Trail, Street |
