Product Details

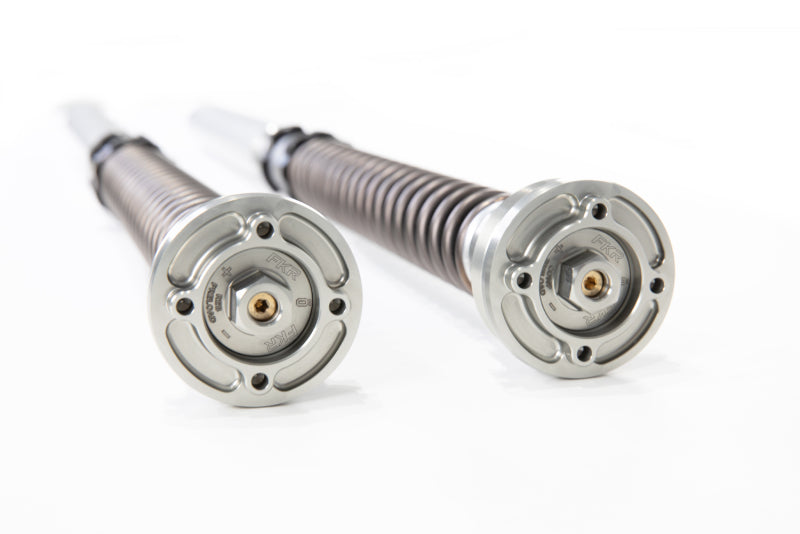

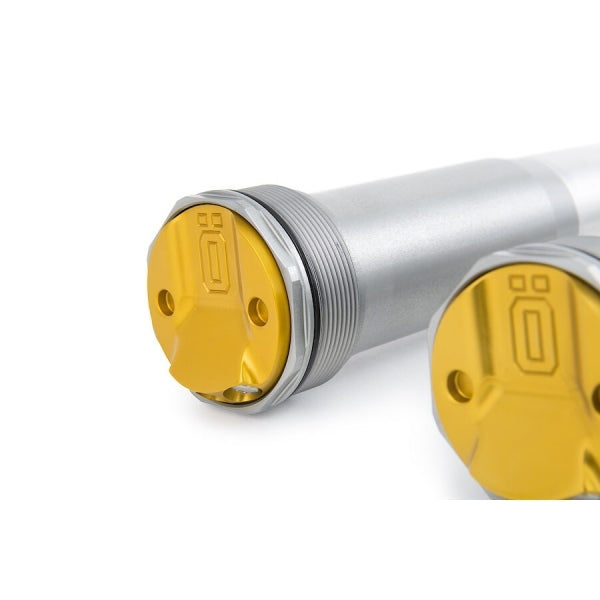

Off-Road TTX Cartridge SHERCO 125/250/300/450/500 SE/SEF 2020-23, YAMAHA YZ125/250
If you want to keep your front fork legs but still upgrade to Öhlins TTX, just pull out the standard inserts and pop in this powerful TTX22 cartridge kit from Öhlins R&D. The same kit that is fitted in the Öhlins Front Fork is based on the Öhlins TTX-technology is also available as a stand-alone cartridge kit for all major models. The TTX technology brings a positive pressure balance in the system, thanks to the twin tube technology. The gas pressurized dividing piston inside pushes the hydraulic fluid back into the low pressure side and the end result is better improved performance and no more cavitation. The kit is lighter thanks to an 8 mm steel hollow shaft and the main piston diameter is 22 mm. All other details are made in aluminum. Settings are constantly improved and a new one-way rebound valve was recently introduced which improves the performance and gives better front wheel control. Available for most major models on the market.
Springs and oil sold separately!
Tech
- Cartridge kit with patented TTX design
- Gas pressurized damping system for immediate damping response
- Easy installation in OE front forks
- External compression adjuster
- External rebound adjuster
- Improved hydraulic stops to improve bottoming resistance
- Springs, oil and installation tools sold separately.
- New top out rubber for smoother top out feeling
- Available for all major MX and Enduro models
Specifications
| Type | Cartridge Kit |
|---|---|
| Series | TTX 22 |
| Best For | MX / Motocross, Enduro, Track |
