Product Details

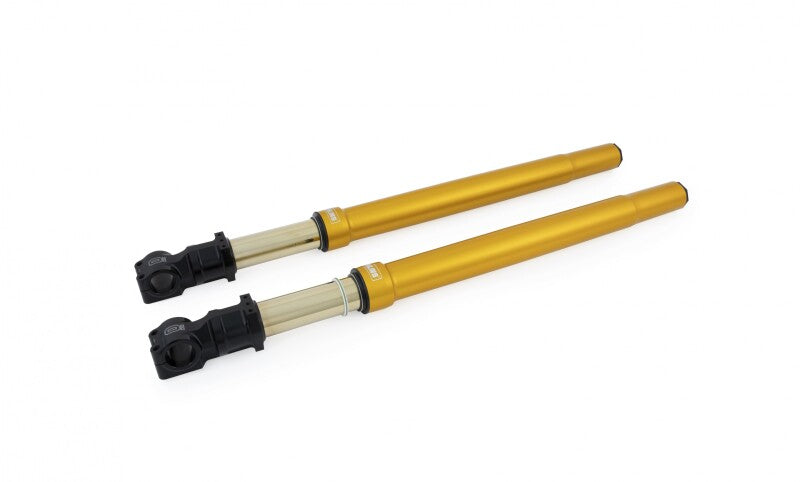

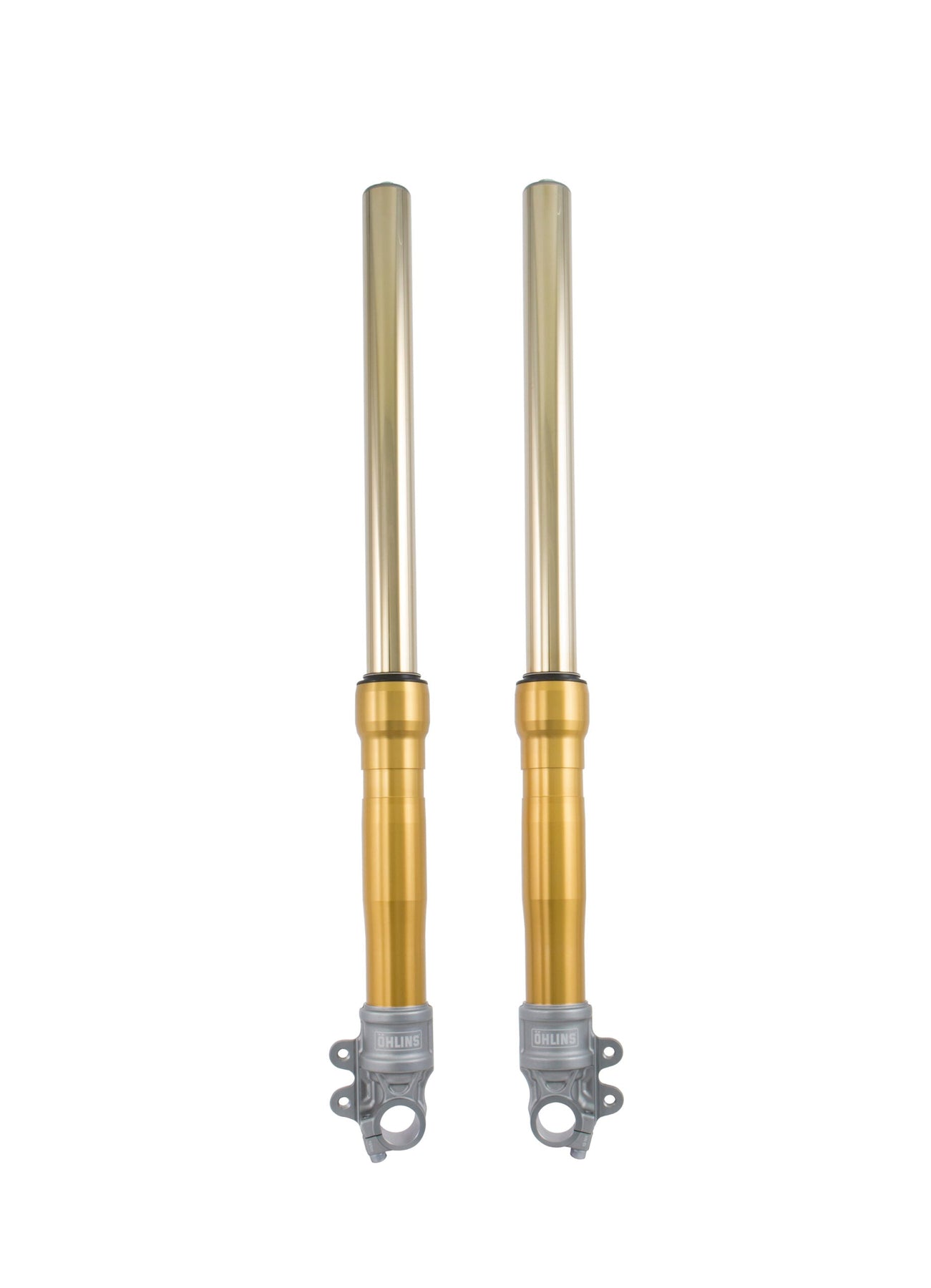

Universal RWU 43 Custom All Gold
Öhlins offers a 43 mm conventional universal fork for any custom builder that wants to give the bike supreme suspension yet classic style and at the same time get the familiar Öhlins Racing design. They are available in an Öhlins gold version as well as a black version.
The technology in this fully adjustable fork has been proven through the years on numerous applications and works for a range of different applications.

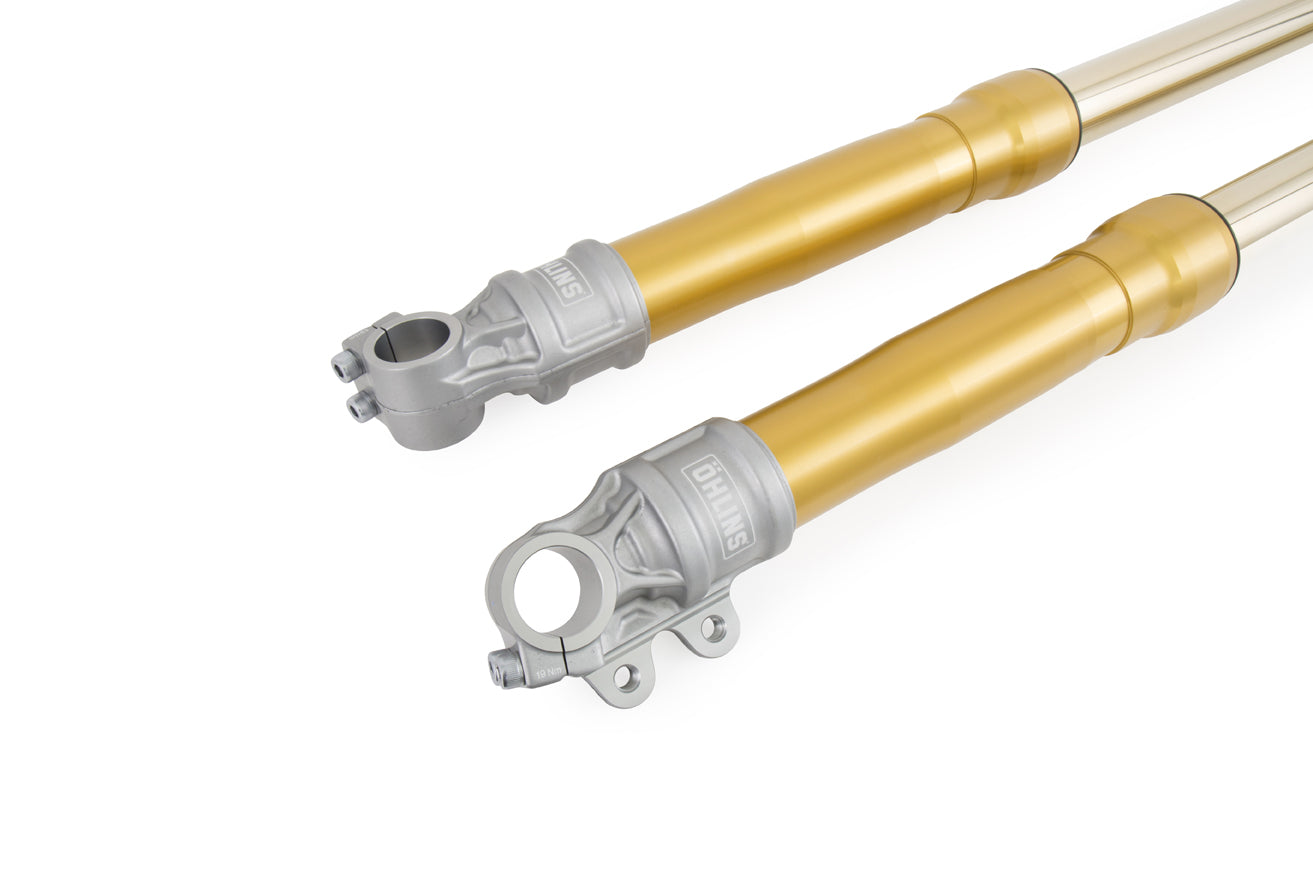

The top cap gives the possibility to adjust spring preload as well as rebound adjustment in each leg separately. The external adjuster on the fork bottom clamps is for compression adjustments. The fork bottoms come without brake caliper and fender mountings, this enables the fork to be easily adapted to various models.
Tech
- Stroke 120 mm
- Length 800 mm
- Triple clamp diam. 43 mm
- Wheel axle 32 mm
- Spring rate 9,5 N/mm
- Fully adjustable
- Setting can be changed with help from Öhlins Service Centres
Specifications
| Type | Fork assembly |
|---|---|
| Adjustability | Compression, Rebound, Preload |
| Finish | Gold |
| Caliper Mounting | None - left-side only brake setups |
Verified from Garamoto’s catalog & fitment data.
