Product Details
The foot controls are one of the most vital connections you have with your motorcycle. As a result Woodcraft designs and builds the best Rearsets available to ensure your motorcycle reacts the way you intend it to.
- CNC machined from 6061-T6 billet aluminum and offer more than twice the durability of OEM rearset brackets.
- 3-piece Pedals giving you an even stronger assembly and continuing our tradition of easy part replacement.
- Our trick knurled footpegs give supreme feedback and the best traction available today.
- Woodcraft rearset kits offer eccentric foot and toe pegs for adjustability (where applicable).
- Virtually any part in our rearset kit can be purchased separately from our kits under the Spare Parts tab
Kit Specific Details
Shift Pattern: This rearset can be used in STD shift - without quickshifter.
Peg Movement: Peg position is between 1/2 and 1 inch up and 1/4 to 3/4 back over stock

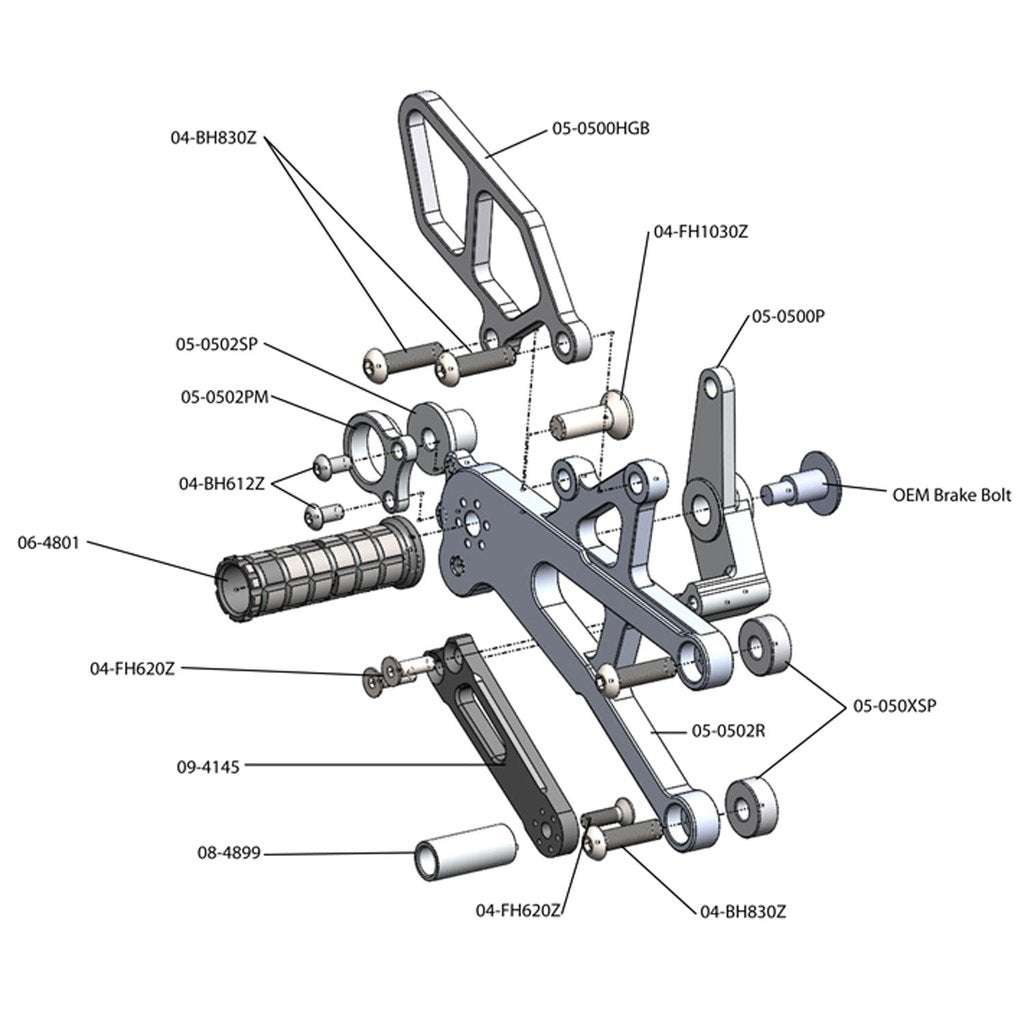

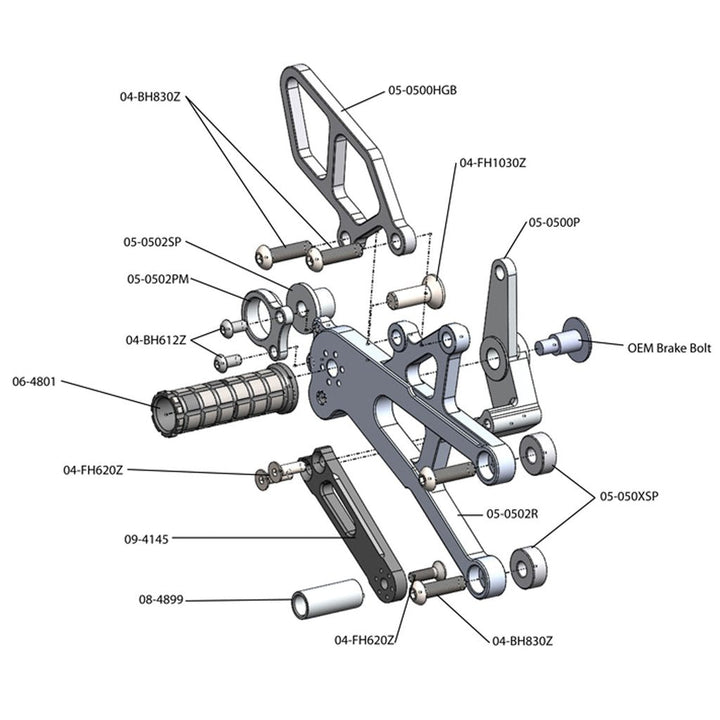

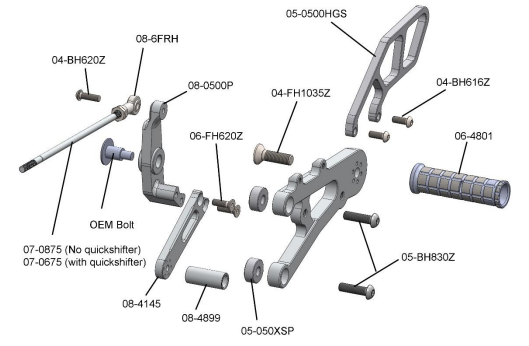

OEM Parts: Woodcraft rearsets assume you are replacing OEM rearsets. This kit utilizes some OEM components - see exploded drawings for details.
NOTE: 765 owners, you can retain the OEM brakelight switch with the included hardware.
Brake Pedal Return Spring : 09-7125
Brake Pressure Switch : 03-0100
Specifications
| Type | Rearset |
|---|---|
| Material | 6061-T6 billet aluminum |
| Shift Pattern | STD |
| Peg Movement | 1/2 to 1 inch up and 1/4 to 3/4 back over stock |
Verified from Garamoto’s catalog & fitment data.
